Solved Random Bluescreens, help a germany guy

Discussion in 'Win 7/Vista BSOD' started by Instinctlol, Jan 21, 2012.

Recommended: Click here to Fix Errors and Optimize Windows

Thread Status:
Not open for further replies.
Page 1 of 4

  1. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    Since I got my new graphics card (XFX Radeon HD 6870 Dual Fan) I get random BSOD's (quota_underflow, driver_irql_not_less_or_equal, system_service_exception). Most of the time they occur while playing Battlefield 3, but they also appear while browsing the web. Some days everything is fine, some days I get 2 to 3 BSODs (when it's weekend respectively when my pc is on for a long time).

    Furthermore: My PC doesn't do warm starts, if I do this, my fans are really loud and the screen stays black. To start the PC, I have to turn the switch of my power supply off, start the PC and turn the switch on.

    Things I already did:

    -memtest with no errors
    -chkdsk with no serious problems
    -format c:\

    Before I got my XFX, I had a Sapphire HD 6870, which I wanted in the first place, but my PC wouldn't start with it, so I returned it and bought a XFX instead.



    So I GUESS the problem is my XFX, but before I return it, I wanted to hear your statements. What do you want me to do? :)

    (I'm from germany, so I apologize for language issues in my post or PCHF-files)
    Instinctlol, Jan 21, 2012
    #1

  2. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    Hi Instinctlol, welcome to PCHF,

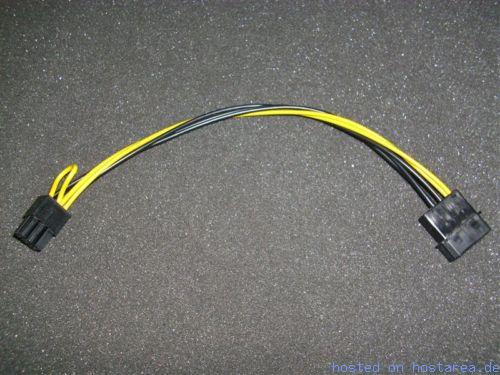

    My first thoughts are, did you take into account the additional power requirements in terms of amperage that would be required for these cards?

    Your log files show that these errors were caused by memory corruption. With this kind of stop error, it's likely that whatever hardware or software (often 3rd party drivers) have already done it's damage some time before the stop errors occurred. For that reason, these BSOD's are a symptom of another problem and we need to investigate further.

    The only 3rd party driver running particularly known for causing memory corruption (among other issues) is that which belongs to Daemon Tools (dtsoftbus01.sys). I would suggest removing this driver in the first instance. If you need to mount ISO's, MagicDisc is a good stable alternative. We could also use a tool called "verifier" to be certain that there are no further driver problems that could lead to memory corruption.

    Just to gather some further information about your hardware, it's configuration, voltages and temperatures, please can you post a CPU-Z log. After it has been downloaded, click on the About tab, followed by Save Report (TXT). This will produce a readable log file which you'll be able to upload here ;)

    INITIAL BUGCHECK ANALYSIS
    Code:
    Opened log file 'c:debuglog.txt'

Microsoft (R) Windows Debugger Version 6.11.0001.404 AMD64
Copyright (c) Microsoft Corporation. All rights reserved.


Loading Dump File [C:\Users\admin\Desktop\New folder (8)\010412-14687-01.dmp]
Mini Kernel Dump File: Only registers and stack trace are available

Symbol search path is: SRV*c:\symbols*http://msdl.microsoft.com/download/symbols;symsrv*symsrv.dll*c:\symbols*http://msdl.microsoft.com/download/symbols
Executable search path is: C:\Windows;C:\Windows\system32;C:\Windows\system32\drivers
Windows 7 Kernel Version 7601 (Service Pack 1) MP (6 procs) Free x64
Product: WinNt, suite: TerminalServer SingleUserTS
Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
Machine Name:
Kernel base = 0xfffff800`02a65000 PsLoadedModuleList = 0xfffff800`02caae90
Debug session time: Wed Jan  4 11:01:51.592 2012 (GMT+0)
System Uptime: 0 days 0:53:29.920
Loading Kernel Symbols
...............................................................
................................................................
.......................
Loading User Symbols
Loading unloaded module list
.....
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

Use !analyze -v to get detailed debugging information.

BugCheck A, {fffffa8015e00000, 2, 0, fffff80002a836d0}

Probably caused by : memory_corruption ( nt!MiInsertIoSpaceMap+274 )

Followup: MachineOwner
---------

4: kd> !analyze -v;r;kv;lmtn;.logclose;q
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

IRQL_NOT_LESS_OR_EQUAL (a)
An attempt was made to access a pageable (or completely invalid) address at an
interrupt request level (IRQL) that is too high.  This is usually
caused by drivers using improper addresses.
If a kernel debugger is available get the stack backtrace.
Arguments:
Arg1: fffffa8015e00000, memory referenced
Arg2: 0000000000000002, IRQL
Arg3: 0000000000000000, bitfield :
	bit 0 : value 0 = read operation, 1 = write operation
	bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
Arg4: fffff80002a836d0, address which referenced memory

Debugging Details:
------------------


READ_ADDRESS: GetPointerFromAddress: unable to read from fffff80002d160e8
 fffffa8015e00000

CURRENT_IRQL:  2

FAULTING_IP:
nt!MiInsertIoSpaceMap+274
fffff800`02a836d0 488b6d00        mov     rbp,qword ptr [rbp]

CUSTOMER_CRASH_COUNT:  1

DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

BUGCHECK_STR:  0xA

PROCESS_NAME:  bf3.exe

TRAP_FRAME:  fffff88009dd1480 -- (.trap 0xfffff88009dd1480)
.trap 0xfffff88009dd1480
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000000000 rbx=0000000000000000 rcx=ffffce8044295f90
rdx=fffffa8008a95d30 rsi=0000000000000000 rdi=0000000000000000
rip=fffff80002a836d0 rsp=fffff88009dd1610 rbp=fffffa8015e00000
 r8=fffffa8008a95d60  r9=0000000000000001 r10=00000000000d382f
r11=0000000000000001 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei pl nz na pe nc
nt!MiInsertIoSpaceMap+0x274:
fffff800`02a836d0 488b6d00        mov     rbp,qword ptr [rbp] ss:0018:fffffa80`15e00000=????????????????
.trap
Resetting default scope

LAST_CONTROL_TRANSFER:  from fffff80002ae4be9 to fffff80002ae5640

STACK_TEXT:
fffff880`09dd1338 fffff800`02ae4be9 : 00000000`0000000a fffffa80`15e00000 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
fffff880`09dd1340 fffff800`02ae3860 : 00000000`00000001 fffffa80`084a5610 00000000`00000001 00000000`00000001 : nt!KiBugCheckDispatch+0x69
fffff880`09dd1480 fffff800`02a836d0 : fffff880`00000000 00000000`00000001 00000000`00000001 00000000`000007ff : nt!KiPageFault+0x260
fffff880`09dd1610 fffff800`02b53dfb : fffff880`02b01000 fffff880`09dd1840 00000000`00000001 fffff6fb`00000001 : nt!MiInsertIoSpaceMap+0x274
fffff880`09dd16b0 fffff800`02d8cf62 : fffff880`09dd1840 00000000`00000000 00000000`00000001 fffff880`09dd1ca0 : nt! ?? ::FNODOBFM::`string'+0x36f01
fffff880`09dd1780 fffff800`02d8cabf : fffffa80`072ff120 00000000`315f8000 fffffa80`096e6b30 00000000`01470020 : nt!MmCopyVirtualMemory+0x436
fffff880`09dd1b30 fffff800`02ae48d3 : fffffa80`08a1f830 00000000`0048e7f8 fffff880`09dd1bc8 00000000`0000032c : nt!NtReadVirtualMemory+0xff
fffff880`09dd1bb0 00000000`7784170a : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
00000000`0048e7d8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x7784170a


STACK_COMMAND:  kb

FOLLOWUP_IP:
nt!MiInsertIoSpaceMap+274
fffff800`02a836d0 488b6d00        mov     rbp,qword ptr [rbp]

SYMBOL_STACK_INDEX:  3

SYMBOL_NAME:  nt!MiInsertIoSpaceMap+274

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: nt

DEBUG_FLR_IMAGE_TIMESTAMP:  4ce7951a

IMAGE_NAME:  memory_corruption

FAILURE_BUCKET_ID:  X64_0xA_nt!MiInsertIoSpaceMap+274

BUCKET_ID:  X64_0xA_nt!MiInsertIoSpaceMap+274

Followup: MachineOwner
---------

rax=fffff88009dd1440 rbx=0000000000000001 rcx=000000000000000a
rdx=fffffa8015e00000 rsi=0000000000000001 rdi=fffffa80084a5610
rip=fffff80002ae5640 rsp=fffff88009dd1338 rbp=fffff88009dd1500
 r8=0000000000000002  r9=0000000000000000 r10=fffff80002a836d0
r11=0000000000000000 r12=fffffa8007af4d70 r13=fffffa8007af4da0
r14=0000000000000000 r15=00000000000d3830
iopl=0         nv up ei ng nz na pe nc
cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00000282
nt!KeBugCheckEx:
fffff800`02ae5640 48894c2408      mov     qword ptr [rsp+8],rcx ss:0018:fffff880`09dd1340=000000000000000a
Child-SP          RetAddr           : Args to Child                                                           : Call Site
fffff880`09dd1338 fffff800`02ae4be9 : 00000000`0000000a fffffa80`15e00000 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
fffff880`09dd1340 fffff800`02ae3860 : 00000000`00000001 fffffa80`084a5610 00000000`00000001 00000000`00000001 : nt!KiBugCheckDispatch+0x69
fffff880`09dd1480 fffff800`02a836d0 : fffff880`00000000 00000000`00000001 00000000`00000001 00000000`000007ff : nt!KiPageFault+0x260 (TrapFrame @ fffff880`09dd1480)
fffff880`09dd1610 fffff800`02b53dfb : fffff880`02b01000 fffff880`09dd1840 00000000`00000001 fffff6fb`00000001 : nt!MiInsertIoSpaceMap+0x274
fffff880`09dd16b0 fffff800`02d8cf62 : fffff880`09dd1840 00000000`00000000 00000000`00000001 fffff880`09dd1ca0 : nt! ?? ::FNODOBFM::`string'+0x36f01
fffff880`09dd1780 fffff800`02d8cabf : fffffa80`072ff120 00000000`315f8000 fffffa80`096e6b30 00000000`01470020 : nt!MmCopyVirtualMemory+0x436
fffff880`09dd1b30 fffff800`02ae48d3 : fffffa80`08a1f830 00000000`0048e7f8 fffff880`09dd1bc8 00000000`0000032c : nt!NtReadVirtualMemory+0xff
fffff880`09dd1bb0 00000000`7784170a : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13 (TrapFrame @ fffff880`09dd1c20)
00000000`0048e7d8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x7784170a
start             end                 module name
fffff800`00bae000 fffff800`00bb8000   kdcom    kdcom.dll    Tue Jul 14 02:31:07 2009 (4A5BDFDB)
fffff800`02a1c000 fffff800`02a65000   hal      hal.dll      Sat Nov 20 13:00:25 2010 (4CE7C669)
fffff800`02a65000 fffff800`0304f000   nt       ntkrnlmp.exe Sat Nov 20 09:30:02 2010 (4CE7951A)
fffff880`00c00000 fffff880`00c0b000   amdxata  amdxata.sys  Fri Mar 19 16:18:18 2010 (4BA3A3CA)
fffff880`00c0b000 fffff880`00c57000   fltmgr   fltmgr.sys   Sat Nov 20 09:19:24 2010 (4CE7929C)
fffff880`00c57000 fffff880`00c6b000   fileinfo fileinfo.sys Tue Jul 14 00:34:25 2009 (4A5BC481)
fffff880`00c70000 fffff880`00c7d000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Tue Jul 14 02:29:09 2009 (4A5BDF65)
fffff880`00c7d000 fffff880`00c91000   PSHED    PSHED.dll    Tue Jul 14 02:32:23 2009 (4A5BE027)
fffff880`00c91000 fffff880`00cef000   CLFS     CLFS.SYS     Tue Jul 14 00:19:57 2009 (4A5BC11D)
fffff880`00cef000 fffff880`00daf000   CI       CI.dll       Sat Nov 20 13:12:36 2010 (4CE7C944)
fffff880`00daf000 fffff880`00dc9000   mountmgr mountmgr.sys Sat Nov 20 09:19:21 2010 (4CE79299)
fffff880`00dc9000 fffff880`00dd2000   atapi    atapi.sys    Tue Jul 14 00:19:47 2009 (4A5BC113)
fffff880`00dd2000 fffff880`00dfc000   ataport  ataport.SYS  Sat Nov 20 09:19:15 2010 (4CE79293)
fffff880`00e00000 fffff880`00e33000   pci      pci.sys      Sat Nov 20 09:19:11 2010 (4CE7928F)
fffff880`00e33000 fffff880`00e40000   vdrvroot vdrvroot.sys Tue Jul 14 01:01:31 2009 (4A5BCADB)
fffff880`00e40000 fffff880`00e55000   partmgr  partmgr.sys  Sat Nov 20 09:20:00 2010 (4CE792C0)
fffff880`00e55000 fffff880`00e6a000   volmgr   volmgr.sys   Sat Nov 20 09:19:28 2010 (4CE792A0)
fffff880`00e6a000 fffff880`00ec6000   volmgrx  volmgrx.sys  Sat Nov 20 09:20:43 2010 (4CE792EB)
fffff880`00ec7000 fffff880`00f6b000   Wdf01000 Wdf01000.sys Tue Jul 14 00:22:07 2009 (4A5BC19F)
fffff880`00f6b000 fffff880`00f7a000   WDFLDR   WDFLDR.SYS   Tue Jul 14 00:19:54 2009 (4A5BC11A)
fffff880`00f7a000 fffff880`00fd1000   ACPI     ACPI.sys     Sat Nov 20 09:19:16 2010 (4CE79294)
fffff880`00fd1000 fffff880`00fda000   WMILIB   WMILIB.SYS   Tue Jul 14 00:19:51 2009 (4A5BC117)
fffff880`00fda000 fffff880`00fe4000   msisadrv msisadrv.sys Tue Jul 14 00:19:26 2009 (4A5BC0FE)
fffff880`00fe4000 fffff880`00feb000   pciide   pciide.sys   Tue Jul 14 00:19:49 2009 (4A5BC115)
fffff880`00feb000 fffff880`00ffb000   PCIIDEX  PCIIDEX.SYS  Tue Jul 14 00:19:48 2009 (4A5BC114)
fffff880`01000000 fffff880`01021000   raspptp  raspptp.sys  Sat Nov 20 10:52:31 2010 (4CE7A86F)
fffff880`01021000 fffff880`0103b000   rassstp  rassstp.sys  Tue Jul 14 01:10:25 2009 (4A5BCCF1)
fffff880`0103b000 fffff880`0104d000   umbus    umbus.sys    Sat Nov 20 10:44:37 2010 (4CE7A695)
fffff880`01054000 fffff880`011f7000   Ntfs     Ntfs.sys     Sat Nov 20 09:20:57 2010 (4CE792F9)
fffff880`01200000 fffff880`0122f000   ndiswan  ndiswan.sys  Sat Nov 20 10:52:32 2010 (4CE7A870)
fffff880`0122f000 fffff880`0124a000   raspppoe raspppoe.sys Tue Jul 14 01:10:17 2009 (4A5BCCE9)
fffff880`0124a000 fffff880`01259000   mouclass mouclass.sys Tue Jul 14 00:19:50 2009 (4A5BC116)
fffff880`0125a000 fffff880`012b8000   msrpc    msrpc.sys    Sat Nov 20 09:21:56 2010 (4CE79334)
fffff880`012b8000 fffff880`012d3000   ksecdd   ksecdd.sys   Sat Nov 20 09:21:15 2010 (4CE7930B)
fffff880`012d3000 fffff880`01345000   cng      cng.sys      Sat Nov 20 10:08:45 2010 (4CE79E2D)
fffff880`01345000 fffff880`01356000   pcw      pcw.sys      Tue Jul 14 00:19:27 2009 (4A5BC0FF)
fffff880`01356000 fffff880`01360000   Fs_Rec   Fs_Rec.sys   Tue Jul 14 00:19:45 2009 (4A5BC111)
fffff880`01360000 fffff880`01370000   watchdog watchdog.sys Tue Jul 14 00:37:35 2009 (4A5BC53F)
fffff880`01370000 fffff880`01379000   RDPCDD   RDPCDD.sys   Tue Jul 14 01:16:34 2009 (4A5BCE62)
fffff880`01379000 fffff880`01382000   rdpencdd rdpencdd.sys Tue Jul 14 01:16:34 2009 (4A5BCE62)
fffff880`01382000 fffff880`0138b000   rdprefmp rdprefmp.sys Tue Jul 14 01:16:35 2009 (4A5BCE63)
fffff880`0138b000 fffff880`01396000   Msfs     Msfs.SYS     Tue Jul 14 00:19:47 2009 (4A5BC113)
fffff880`01396000 fffff880`013a7000   Npfs     Npfs.SYS     Tue Jul 14 00:19:48 2009 (4A5BC114)
fffff880`013a7000 fffff880`013c9000   tdx      tdx.sys      Sat Nov 20 09:21:54 2010 (4CE79332)
fffff880`013c9000 fffff880`013d6000   TDI      TDI.SYS      Sat Nov 20 09:22:06 2010 (4CE7933E)
fffff880`013d6000 fffff880`013fa000   rasl2tp  rasl2tp.sys  Sat Nov 20 10:52:34 2010 (4CE7A872)
fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Sat Nov 20 09:23:13 2010 (4CE79381)
fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Sat Nov 20 10:10:34 2010 (4CE79E9A)
fffff880`0148b000 fffff880`014d3000   dtsoftbus01 dtsoftbus01.sys Mon Oct 17 13:12:30 2011 (4E9C1BAE)
fffff880`014d3000 fffff880`015c6000   ndis     ndis.sys     Sat Nov 20 09:23:30 2010 (4CE79392)
fffff880`015c6000 fffff880`015d4000   vga      vga.sys      Tue Jul 14 00:38:47 2009 (4A5BC587)
fffff880`015d4000 fffff880`015f9000   VIDEOPRT VIDEOPRT.SYS Tue Jul 14 00:38:51 2009 (4A5BC58B)
fffff880`01600000 fffff880`0163a000   fvevol   fvevol.sys   Sat Nov 20 09:24:06 2010 (4CE793B6)
fffff880`0163a000 fffff880`01650000   disk     disk.sys     Tue Jul 14 00:19:57 2009 (4A5BC11D)
fffff880`01650000 fffff880`01680000   CLASSPNP CLASSPNP.SYS Sat Nov 20 09:19:23 2010 (4CE7929B)
fffff880`01680000 fffff880`01698000   rspndr   rspndr.sys   Tue Jul 14 01:08:50 2009 (4A5BCC92)
fffff880`016b6000 fffff880`016e0000   cdrom    cdrom.sys    Sat Nov 20 09:19:20 2010 (4CE79298)
fffff880`016e1000 fffff880`018e5000   tcpip    tcpip.sys    Sat Nov 20 09:25:52 2010 (4CE79420)
fffff880`018e5000 fffff880`0192f000   fwpkclnt fwpkclnt.sys Sat Nov 20 09:21:37 2010 (4CE79321)
fffff880`0192f000 fffff880`0193f000   vmstorfl vmstorfl.sys Sat Nov 20 09:57:30 2010 (4CE79B8A)
fffff880`0193f000 fffff880`0198b000   volsnap  volsnap.sys  Sat Nov 20 09:20:08 2010 (4CE792C8)
fffff880`0198b000 fffff880`01993000   spldr    spldr.sys    Mon May 11 17:56:27 2009 (4A0858BB)
fffff880`01993000 fffff880`019cd000   rdyboost rdyboost.sys Sat Nov 20 09:43:10 2010 (4CE7982E)
fffff880`019cd000 fffff880`019df000   mup      mup.sys      Tue Jul 14 00:23:45 2009 (4A5BC201)
fffff880`019df000 fffff880`019e8000   hwpolicy hwpolicy.sys Sat Nov 20 09:18:54 2010 (4CE7927E)
fffff880`019e8000 fffff880`019f1000   Null     Null.SYS     Tue Jul 14 00:19:37 2009 (4A5BC109)
fffff880`019f1000 fffff880`019f8000   Beep     Beep.SYS     Tue Jul 14 01:00:13 2009 (4A5BCA8D)
fffff880`06a00000 fffff880`06a1d000   serial   serial.sys   Tue Jul 14 01:00:40 2009 (4A5BCAA8)
fffff880`06a1d000 fffff880`06a38000   wanarp   wanarp.sys   Sat Nov 20 10:52:36 2010 (4CE7A874)
fffff880`06a38000 fffff880`06a4c000   termdd   termdd.sys   Sat Nov 20 11:03:40 2010 (4CE7AB0C)
fffff880`06a4c000 fffff880`06a9d000   rdbss    rdbss.sys    Sat Nov 20 09:27:51 2010 (4CE79497)
fffff880`06a9d000 fffff880`06aa9000   nsiproxy nsiproxy.sys Tue Jul 14 00:21:02 2009 (4A5BC15E)
fffff880`06aa9000 fffff880`06ab4000   mssmbios mssmbios.sys Tue Jul 14 00:31:10 2009 (4A5BC3BE)
fffff880`06ab4000 fffff880`06ac3000   discache discache.sys Tue Jul 14 00:37:18 2009 (4A5BC52E)
fffff880`06ac3000 fffff880`06ad9000   AgileVpn AgileVpn.sys Tue Jul 14 01:10:24 2009 (4A5BCCF0)
fffff880`06add000 fffff880`06b66000   afd      afd.sys      Sat Nov 20 09:23:27 2010 (4CE7938F)
fffff880`06b66000 fffff880`06bab000   netbt    netbt.sys    Sat Nov 20 09:23:18 2010 (4CE79386)
fffff880`06bab000 fffff880`06bb4000   wfplwf   wfplwf.sys   Tue Jul 14 01:09:26 2009 (4A5BCCB6)
fffff880`06bb4000 fffff880`06bda000   pacer    pacer.sys    Sat Nov 20 10:52:18 2010 (4CE7A862)
fffff880`06bda000 fffff880`06be9000   netbios  netbios.sys  Tue Jul 14 01:09:26 2009 (4A5BCCB6)
fffff880`06be9000 fffff880`06bf8000   kbdclass kbdclass.sys Tue Jul 14 00:19:50 2009 (4A5BC116)
fffff880`06c00000 fffff880`06c0b000   rdpbus   rdpbus.sys   Tue Jul 14 01:17:46 2009 (4A5BCEAA)
fffff880`06c0c000 fffff880`06c8f000   csc      csc.sys      Sat Nov 20 09:27:12 2010 (4CE79470)
fffff880`06c8f000 fffff880`06cad000   dfsc     dfsc.sys     Sat Nov 20 09:26:31 2010 (4CE79447)
fffff880`06cad000 fffff880`06cbe000   blbdrive blbdrive.sys Tue Jul 14 00:35:59 2009 (4A5BC4DF)
fffff880`06cbe000 fffff880`06ce4000   tunnel   tunnel.sys   Sat Nov 20 10:51:50 2010 (4CE7A846)
fffff880`06ce4000 fffff880`06cf9000   amdppm   amdppm.sys   Tue Jul 14 00:19:25 2009 (4A5BC0FD)
fffff880`06cf9000 fffff880`06d4e000   atikmpag atikmpag.sys Wed Oct 26 02:21:58 2011 (4EA760B6)
fffff880`06d4e000 fffff880`06da4000   USBPORT  USBPORT.SYS  Sat Nov 20 10:44:00 2010 (4CE7A670)
fffff880`06da4000 fffff880`06db5000   usbehci  usbehci.sys  Sat Nov 20 10:43:54 2010 (4CE7A66A)
fffff880`06db5000 fffff880`06df3000   1394ohci 1394ohci.sys Sat Nov 20 10:44:56 2010 (4CE7A6A8)
fffff880`06df3000 fffff880`06dff000   ndistapi ndistapi.sys Tue Jul 14 01:10:00 2009 (4A5BCCD8)
fffff880`07000000 fffff880`0704d000   mrxsmb10 mrxsmb10.sys Sat Nov 20 09:26:53 2010 (4CE7945D)
fffff880`0704d000 fffff880`07071000   mrxsmb20 mrxsmb20.sys Sat Nov 20 09:26:47 2010 (4CE79457)
fffff880`0708c000 fffff880`07155000   HTTP     HTTP.sys     Sat Nov 20 09:24:30 2010 (4CE793CE)
fffff880`07155000 fffff880`07173000   bowser   bowser.sys   Tue Jul 14 00:23:50 2009 (4A5BC206)
fffff880`07173000 fffff880`0718b000   mpsdrv   mpsdrv.sys   Tue Jul 14 01:08:25 2009 (4A5BCC79)
fffff880`0718b000 fffff880`071b8000   mrxsmb   mrxsmb.sys   Sat Nov 20 09:27:41 2010 (4CE7948D)
fffff880`07200000 fffff880`07246000   dxgmms1  dxgmms1.sys  Sat Nov 20 09:49:53 2010 (4CE799C1)
fffff880`07246000 fffff880`0726a000   HDAudBus HDAudBus.sys Sat Nov 20 10:43:42 2010 (4CE7A65E)
fffff880`0726a000 fffff880`0729c000   Rt64win7 Rt64win7.sys Thu Feb 26 09:04:13 2009 (49A65B0D)
fffff880`0729c000 fffff880`072a7000   usbohci  usbohci.sys  Tue Jul 14 01:06:30 2009 (4A5BCC06)
fffff880`072a7000 fffff880`07cfd000   atikmdag atikmdag.sys Wed Oct 26 02:59:06 2011 (4EA7696A)
fffff880`07cfd000 fffff880`07df1000   dxgkrnl  dxgkrnl.sys  Sat Nov 20 09:50:50 2010 (4CE799FA)
fffff880`07df1000 fffff880`07dfd000   serenum  serenum.sys  Tue Jul 14 01:00:33 2009 (4A5BCAA1)
fffff880`08000000 fffff880`08010000   CompositeBus CompositeBus.sys Sat Nov 20 10:33:17 2010 (4CE7A3ED)
fffff880`08010000 fffff880`08011480   swenum   swenum.sys   Tue Jul 14 01:00:18 2009 (4A5BCA92)
fffff880`0801a000 fffff880`08345000   cmudaxp  cmudaxp.sys  Thu Mar 10 07:44:15 2011 (4D78814F)
fffff880`08345000 fffff880`08382000   portcls  portcls.sys  Tue Jul 14 01:06:27 2009 (4A5BCC03)
fffff880`08382000 fffff880`083a4000   drmk     drmk.sys     Tue Jul 14 02:01:25 2009 (4A5BD8E5)
fffff880`083a4000 fffff880`083e7000   ks       ks.sys       Sat Nov 20 10:33:23 2010 (4CE7A3F3)
fffff880`083e7000 fffff880`083ec200   ksthunk  ksthunk.sys  Tue Jul 14 01:00:19 2009 (4A5BCA93)
fffff880`083ed000 fffff880`083f6000   wmiacpi  wmiacpi.sys  Tue Jul 14 00:31:02 2009 (4A5BC3B6)
fffff880`08800000 fffff880`0881b000   USBSTOR  USBSTOR.SYS  Sat Nov 20 10:44:05 2010 (4CE7A675)
fffff880`0881b000 fffff880`0881cf00   USBD     USBD.SYS     Tue Jul 14 01:06:23 2009 (4A5BCBFF)
fffff880`0881d000 fffff880`0882b000   hidusb   hidusb.sys   Sat Nov 20 10:43:49 2010 (4CE7A665)
fffff880`0882b000 fffff880`08844000   HIDCLASS HIDCLASS.SYS Sat Nov 20 10:43:49 2010 (4CE7A665)
fffff880`08844000 fffff880`0884c080   HIDPARSE HIDPARSE.SYS Tue Jul 14 01:06:17 2009 (4A5BCBF9)
fffff880`0884d000 fffff880`0885f100   xusb21   xusb21.sys   Thu Aug 13 23:10:17 2009 (4A848F49)
fffff880`08860000 fffff880`0886d000   mouhid   mouhid.sys   Tue Jul 14 01:00:20 2009 (4A5BCA94)
fffff880`0886d000 fffff880`0887b000   kbdhid   kbdhid.sys   Sat Nov 20 10:33:25 2010 (4CE7A3F5)
fffff880`0887b000 fffff880`08889000   monitor  monitor.sys  Tue Jul 14 00:38:52 2009 (4A5BC58C)
fffff880`08889000 fffff880`088ac000   luafv    luafv.sys    Tue Jul 14 00:26:13 2009 (4A5BC295)
fffff880`088ac000 fffff880`088cd000   WudfPf   WudfPf.sys   Sat Nov 20 10:42:44 2010 (4CE7A624)
fffff880`088cd000 fffff880`088e2000   lltdio   lltdio.sys   Tue Jul 14 01:08:50 2009 (4A5BCC92)
fffff880`088f0000 fffff880`0894a000   usbhub   usbhub.sys   Sat Nov 20 10:44:30 2010 (4CE7A68E)
fffff880`0894a000 fffff880`0895f000   NDProxy  NDProxy.SYS  Sat Nov 20 10:52:20 2010 (4CE7A864)
fffff880`0895f000 fffff880`089bb000   HdAudio  HdAudio.sys  Sat Nov 20 10:44:23 2010 (4CE7A687)
fffff880`089bb000 fffff880`089c9000   crashdmp crashdmp.sys Tue Jul 14 01:01:01 2009 (4A5BCABD)
fffff880`089c9000 fffff880`089d5000   dump_dumpata dump_dumpata.sys Tue Jul 14 00:19:47 2009 (4A5BC113)
fffff880`089d5000 fffff880`089de000   dump_atapi dump_atapi.sys Tue Jul 14 00:19:47 2009 (4A5BC113)
fffff880`089de000 fffff880`089f1000   dump_dumpfve dump_dumpfve.sys Tue Jul 14 00:21:51 2009 (4A5BC18F)
fffff880`089f1000 fffff880`089fd000   Dxapi    Dxapi.sys    Tue Jul 14 00:38:28 2009 (4A5BC574)
fffff880`0ba57000 fffff880`0bafd000   peauth   peauth.sys   Tue Jul 14 02:01:19 2009 (4A5BD8DF)
fffff880`0bafd000 fffff880`0bb08000   secdrv   secdrv.SYS   Wed Sep 13 14:18:38 2006 (4508052E)
fffff880`0bb08000 fffff880`0bb39000   srvnet   srvnet.sys   Sat Nov 20 09:27:20 2010 (4CE79478)
fffff880`0bb39000 fffff880`0bb4b000   tcpipreg tcpipreg.sys Sat Nov 20 10:51:48 2010 (4CE7A844)
fffff880`0bb4b000 fffff880`0bbb6000   srv2     srv2.sys     Sat Nov 20 09:27:43 2010 (4CE7948F)
fffff880`0be00000 fffff880`0be39000   RDPWD    RDPWD.SYS    Sat Nov 20 11:04:37 2010 (4CE7AB45)
fffff880`0be39000 fffff880`0be6a000   WUDFRd   WUDFRd.sys   Sat Nov 20 10:43:32 2010 (4CE7A654)
fffff880`0bee1000 fffff880`0bf7a000   srv      srv.sys      Sat Nov 20 09:28:05 2010 (4CE794A5)
fffff880`0bf7a000 fffff880`0bfa8000   rdpdr    rdpdr.sys    Sat Nov 20 11:06:41 2010 (4CE7ABC1)
fffff880`0bfa8000 fffff880`0bfb0000   DUMETR64 DUMETR64.SYS Mon Sep 12 19:05:56 2011 (4E6E4A04)
fffff880`0bfb0000 fffff880`0bfbb000   tdtcp    tdtcp.sys    Tue Jul 14 01:16:32 2009 (4A5BCE60)
fffff880`0bfbb000 fffff880`0bfca000   tssecsrv tssecsrv.sys Sat Nov 20 11:04:09 2010 (4CE7AB29)
fffff880`0bfca000 fffff880`0bfd5000   asyncmac asyncmac.sys Tue Jul 14 01:10:13 2009 (4A5BCCE5)
fffff880`0bfd5000 fffff880`0bff2000   usbccgp  usbccgp.sys  Sat Nov 20 10:44:03 2010 (4CE7A673)
fffff960`00060000 fffff960`00370000   win32k   win32k.sys   Sat Nov 20 09:52:51 2010 (4CE79A73)
fffff960`00420000 fffff960`0042a000   TSDDD    TSDDD.dll    unavailable (00000000)
fffff960`00780000 fffff960`007a7000   cdd      cdd.dll      Sat Nov 20 12:55:34 2010 (4CE7C546)
fffff960`00800000 fffff960`00861000   ATMFD    ATMFD.DLL    Sat Nov 20 09:49:28 2010 (4CE799A8)

Unloaded modules:
fffff880`0be6a000 fffff880`0bedb000   spsys.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
fffff880`01680000 fffff880`0168e000   crashdmp.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
fffff880`0168e000 fffff880`0169a000   dump_ataport
    Timestamp: unavailable (00000000)
    Checksum:  00000000
fffff880`0169a000 fffff880`016a3000   dump_atapi.s
    Timestamp: unavailable (00000000)
    Checksum:  00000000
fffff880`016a3000 fffff880`016b6000   dump_dumpfve
    Timestamp: unavailable (00000000)
    Checksum:  00000000
Closing open log file c:debuglog.txt
    madmonkey, Jan 21, 2012
    #2

  3. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    I did. I have a 400W power supply (Corsair) and it comes with only one PCI-E supply plug, therefore I used an adapter, which came along with another card (1x 4pin to 1x 6pin).
    After some research I only came along 2x 4pin to 1x 6pin, so the one I have at the moment is possibly faulty?!

    Deinstalled Daemon Tools now :)
    Instinctlol, Jan 21, 2012
    #3

  4. Google Advertisement

  5. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    The minimum is 500w, but it looks like this PSU should still be able to handle it (12v @ 30amps, minimum 28). Take a look under your BIOS hardware monitor to check the 12v readings to see if they are stable (this reading wasn't available in CPU-Z).

    If it was a problem with the card itself, it should be producing a very different stop error, commonly an 0x116. Do you have the old card handy you could test just to be certain the card is related?
    madmonkey, Jan 21, 2012
    #4

  6. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    Re: Random Bluescreens, help a german guy

    [IMG]

    Always stays around this value. I guess it's stable then.

    I'm going to try to boot with a different card now.

    EDIT:

    The Sapphire HD 4850 only has 1 6pin plug, so I did 2 boots, warm and cold, for each of my 6pin cables. No problems. Every boot was fine and I also checked the Volt-levels, which are equal to my 6870.

    PC still doesn't boot warm with my 6870 though.
    Instinctlol, Jan 21, 2012
    #5

  7. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    hmm, the old card, was the voltage closer to 12v on a cold boot?

    Sorry, there was a single 0x116 (just spotted when going back over the logs), which is basically a TDR (Timeout Detection and Recovery) error. Basically when the system detects that a GPU is frozen (timed out), it will attempt to reset both GPU and driver. If that fails, this will ultimately result in a BSOD.

    You mentioned the system doesn't boot normally on a warm start. I can't see that overheating problems could cause the other stop errors and the CPU-Z log shows the GPU was very nice and cool. You could always run a GPU stress test such as Furmark, which will allow you to monitor temperatures during the test. If it reaches triple figures, please stop the test.

    Also, if you immediate remove the card, hit the power button, does it turn on?

    Let's put this into perspective, it's basically going to either be a graphics card issue, or a PSU issue as far as I can see. If it was a motherboard problem or any other component, the problem would be manifested on both new an old cards. There are old no compatibility problems using this card in this system.

    For me, alarm bells are are still ringing - PSU.. PSU! It's the only thing that would explain the other stop errors, and there are still some things to question between the old and new cards you have there. The old card, obviously perfect for this system. It has a single connector for a PSU with a single rail capable of providing 30 amps. In newer PSU's a true ATX v2 PSU (not one marked as ATX v2 compatible) can not provide more than 18 amps on a 12v rail. Those that require more are split into separate rails. Graphics cards such as the 6870 have followed suit.. and provided separate connectors for multiple rails. Although the way you have set it up should work in theory, I wouldn't be entirely sure that it would provide the correct balance in practice.
    madmonkey, Jan 21, 2012
    #6

  8. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    First of all, thanks for your help, because of you being so helpful, I just did a 4€ donation ;)

    I don't remember, could test it though, if you want me to.

    Did a test for 8min, reached max. 70°C and 64% fan speed (those values didn't change for ~4min)

    I don't understand this one. Could you explain this in a more detailed sentence?

    So all in all I should get a new PSU, preferably with ATX v2 standard, min. 2x PCIe connectors and 500W?
    (This is the one I have now)
    Instinctlol, Jan 21, 2012
    #7

  9. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    Would be good if we could just get a little more evidence to prove it's the PSU. 12.46 is high but within tolerance. Alternatively, a multimeter could be used to monitor the individual voltages on those connectors. You could also test the card itself in another PC if you have access to one capable of supporting the card, perhaps another family member or friend's PC.

    You mentioned the PC was not able to start warm, I assumed you meant you were not able to turn the PC on - perhaps I misread. If this happens, immediately remove the card and see if the PC powers up. If it doesn't, then you'll know it's not the card.

    That's right. I did double check the spec's originally was when I found that it was capable of 30amps on the 12v rail.
    madmonkey, Jan 21, 2012
    #8

  10. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    Oh, I am actually able to start the PC, but the screen stays black and the fans of the card are very loud - Keyboard and Mouse seem to work, because their lights are on, I don't hear the starting sound of Windows though, but when I cold-start the PC after a warm start I get a message about Windows not shutting down correctly (because I have to turn the power off).

    I'm testing the 4850 cold start issue now..

    These are all cold start values:

    4850:

    with PCIe connector: 12.408V (~85% of the time) - 12.460V (~15%)
    PCIe adapter: 12.408V (~100%)

    6870: 12.460V (~99%) - 12.513V (~1%)
    Instinctlol, Jan 21, 2012
    #9

  11. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    Assuming the PC's internal speaker is connected, the PC should beep once to indicate it has completed it's post? if so, the same test can be done here as well.

    There's nothing conclusive in those readings, it's is bordering on tolerance on the 6870.
    madmonkey, Jan 22, 2012
    #10

  12. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    I did a new warm start and this time and Windows seemed to be starting properly (indicated by the starting sound).

    So the only thing, which is not working, is the card.
    I'll be keeping an eye on some PSU's, thanks for your help!
    Instinctlol, Jan 23, 2012
    #11

  13. madmonkey Site Manager

    Manager
    PCHF Staff
    Message Count:
    18,861
    Likes Received:
    759
    My System
    Loading...
    No problems Instinctlol, I'm mark this one as solved. Let us know if you need to reopen for any reason ;)
    madmonkey, Jan 23, 2012
    #12

  14. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    Thanks for reopening.

    So yesterday I got my new PSU: Corsair CX500 V2. It has 500W and 2 PCI-e connectors. I tried a warm start and I still get a black screen. To this point, no BOD's occured.
    Instinctlol, Feb 2, 2012
    #13

  15. nameisuser Tech Member

    Tech Member
    Message Count:
    4,636
    Likes Received:
    338
    My System
    Loading...
    Can you boot into the BIOS?

    Can you, egal wie, get into Win 7?
    nameisuser, Feb 2, 2012
    #14

  16. Instinctlol Bronze Member

    Bronze
    Message Count:
    23
    Likes Received:
    0
    My System
    Loading...
    Yes of course, I can do everything except warm-booting.

    When I do a warm boot, my monitor doesn't recognize an input. The screen is just black, everything else is fine. (I know Windows is booting, because I can hear the starting sound)

    No problems when cold-booting.

    EDIT: And here is my first BOD with my new PSU. (Date: 02.02.2012)

    Attached Files:

    Instinctlol, Feb 2, 2012
    #15
Page 1 of 4

Random Bluescreens, help a germany guy

Recommended: Click here to Fix Errors and Optimize Windows
Thread Status:
Not open for further replies.
